Autodesk Chronicle

Autodesk Chronicle

Project Chronicle is a free technology preview from Autodesk Research that makes it extremely convenient and easy for users to capture, share, and learn from software workflows. Project Chronicle consists of a recording utility to capture recordings, and a website that displays the recordings as Chronicles, interactive video tutorials. The videos can be shared publically or set to private, so that they can be used as internal training materials for a private office or classroom.

The Chronicle Recording Utility allows users to capture workflows from within Autodesk products. The utility records a continuous video screen capture and optionally voice narration. What makes Chronicle unique is that is also records the timing and details of workflow information, such as the tools, settings, and dialog boxes that are used during the workflow.

Captured data is then uploaded to the Chronicle Website. An author can then publish the Chronicle as either public or private, so that the desired user group can view a video of the workflow. Additionally, the captured workflow events are displayed on an interactive timeline, enhancing the viewing and learning experience.

In essence, Project Chronicle will allow software experts to showcase their expertise and will allow other users to view and learn from their real-world expert examples.

Please visit the Project Chronicle Website:https://chronicle.autodesk.com.

Read More

Solar Studies-- Revit Architecture 2014

Revit Architecture Solar Studies

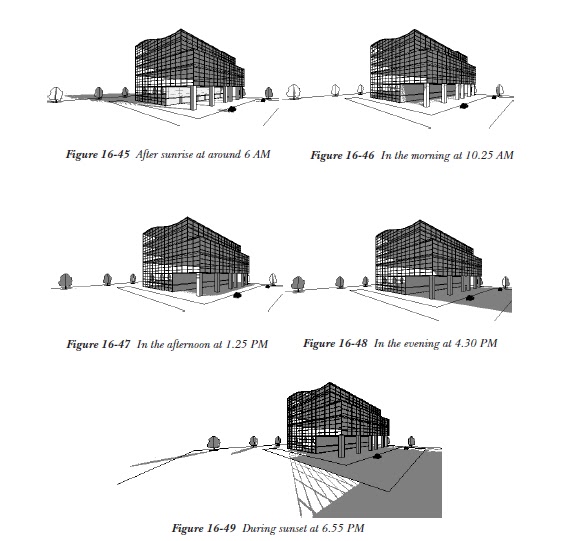

Revit Architecture’s solar study helps you visualize and analyze the position of Sun and solar effects on buildings and sites in the real world at a specified time, date, duration, and location. You can analyze the effect of the Sun on the same building at different locations, such as Boston or Melbourne, by changing the location of the building from Boston to Melbourne. The Solar Study tools in Revit Architecture provide you with a wide range of locations to view the Sun and shadow effects on the same building or site but at different locations by generating the solar studies. Revit Architecture allows you to generate a still solar study in a single frame depicting the shadows at a specified date and time. It can also generate an animated 3 dimensional solar study consisting of multiple frames depicting the shadow movements for a specified duration of time.

These solar studies help you analyze the amount and impact of the natural sunlight and shadows on the building and the site at a particular time in a day and at a particular location. It also helps you study the amount of lighting inside the building during different times of a day and year, at a particular location.

Read More

Worksharing in Revit 2013

While working in a project, coordination is an important element that serves as a success mantra for implementation. In Revit the worksharing is carried either by using Revit Server or using the Workset tool.

Revit Server

In a large scale building project, worksharing helps in finishing a project in time and meeting the quality requirements that are set during the process. Generally, in a large scale building project, worksharing is based on the specialization of work. The professionals such as structural engineers, architects, interior architects, and MEP engineers are involved in their respective fields to accomplish the project. So, the distribution of work at the primary stage is made on the basis of the area of specialization. Each professional has his own set of work to perform for the accomplishment of the project. Therefore, worksharing is an important process that is required to be implemented efficiently to complete the project in time.

In Autodesk Revit Structure, you can apply server-based worksharing with the help of Revit Server, which is a server application. Revit Server uses a central server and multiple local servers for collaborating across a Wide Area Network (WAN). The central server hosts the central model of a workshared project and remain accessible to all team members over the Wide Area Network. Similarly, the local server is accessible to all team members in a Local Area Network (LAN). The local server hosts a local updated copy of the central model. In the Worksharing environment, the team members are not aware of the local server, as it is transparent in their daily operations. Refer to Figure above for the network model of Revit Server.
In Worksharing environment, a team member starts working on the local model of the central model. The local model will be saved in the computer of the team member. As the team member works, the local server requests updated information from the central model on the central server, using available network capacity to transfer the data over the WAN. The updated version of the model is stored on the local server, so the updates are readily available when a team member requests them.
